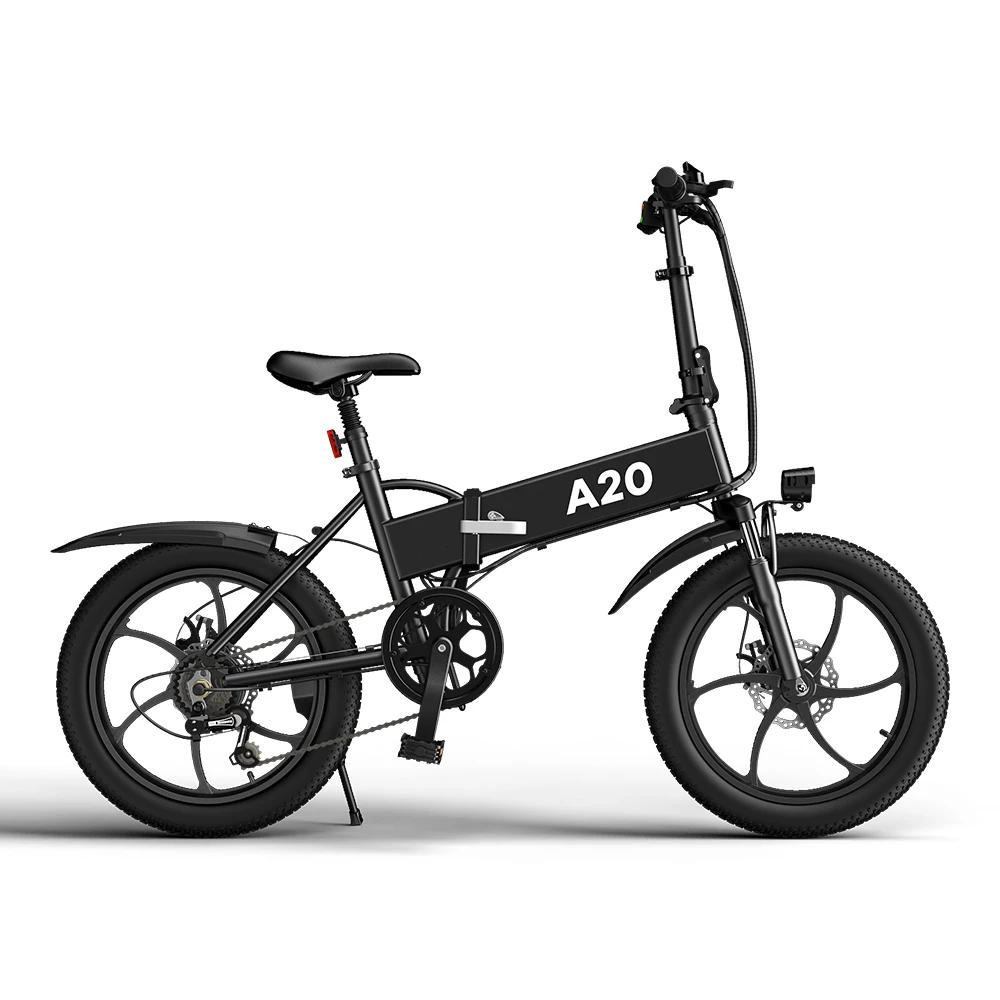

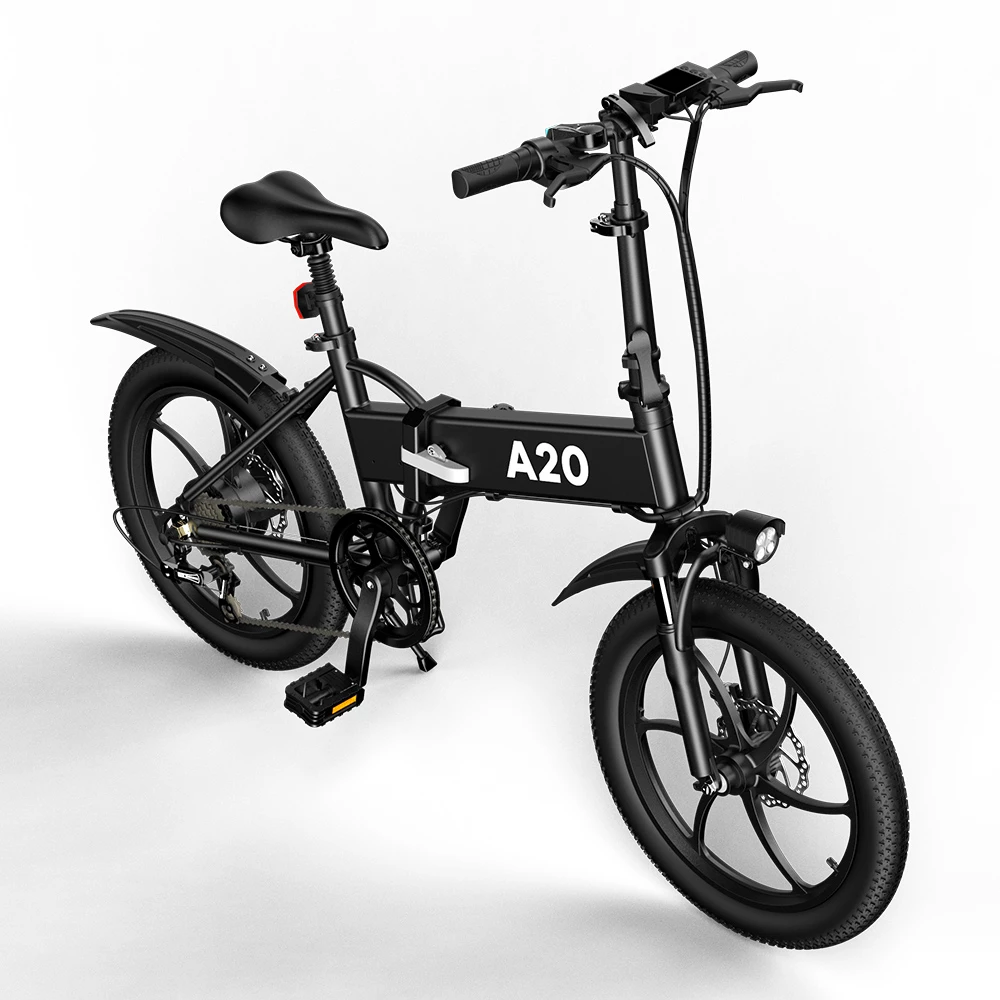

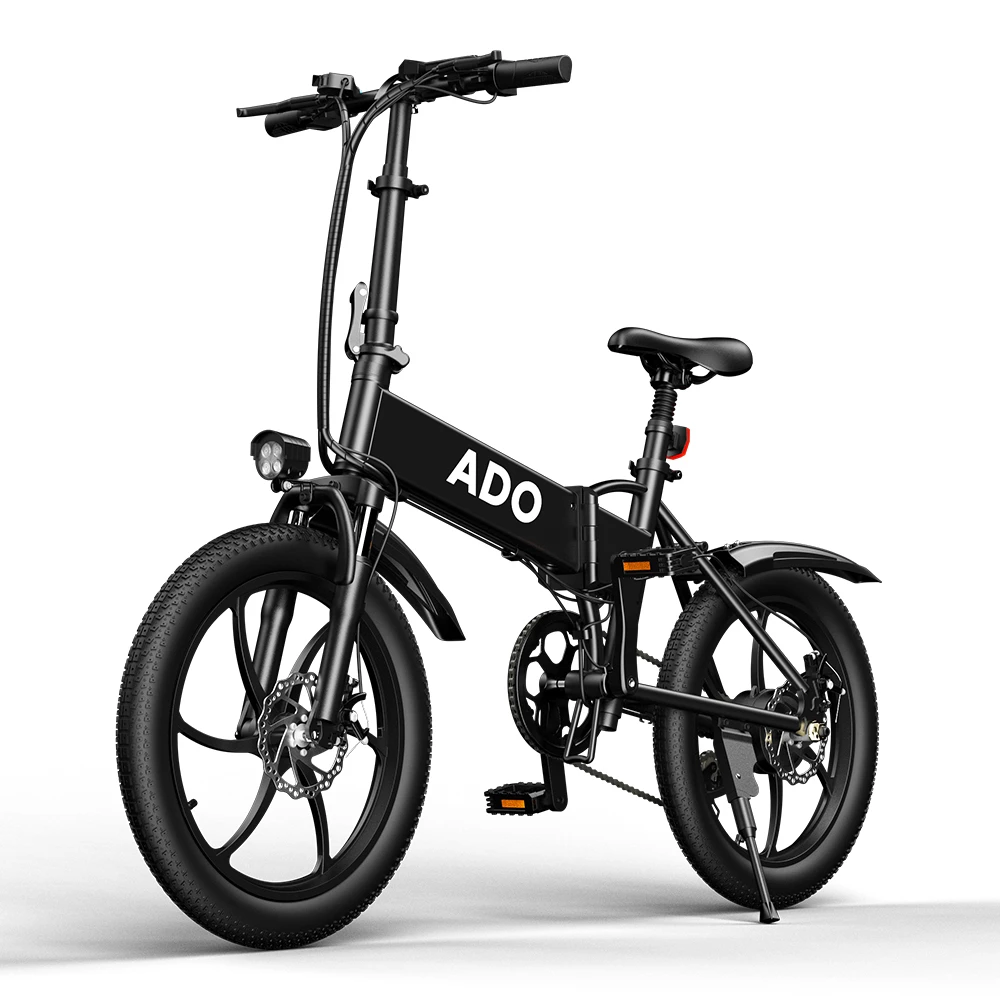

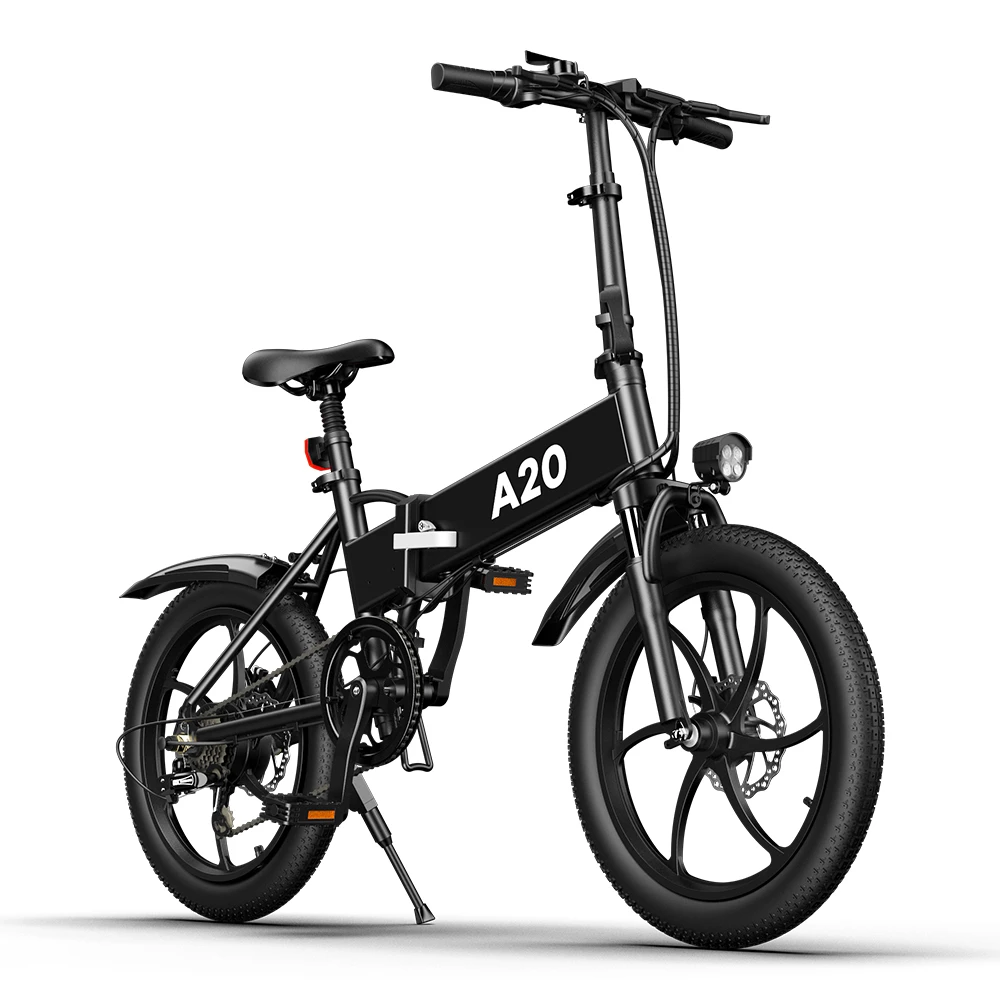

ADO A20 Electric Folding Bike 20 inch City Bicycle 350W Hall Brushless Gear DC Motor SHIMANO 7-Speed Rear Derailleur 36V 10.4Ah Removable Battery 35km/h Max speed up to 60km Max Range IPX5 Double Shock-absorption Aluminum alloy Frame – Black

Support shipping to the United States. (Not include offshore area: Alaska, Hawaii, Guam, Puerto Rico, American Samoa, Northern Mariana Islands, Virgin Islands, Federal States of Micronesia, Marshall Island, Palau, Armed Forces Americas…)



Highlights

Shimano 7 speed Transmission System

350W Power rate Gear Motor with 380 r/Min speed

Front fork and addle tube double Shock-absorption

886 Type HD LCD Display, clearly under the sunshine

Humanization design, like USB Charger/Carrying handle

Specification



General	Brand	ADO
	Type	20*1.95 Inches
	Model	A20
	Color	black/white
Vehicle Performance	Dimensions L×W×H	Overall unit: 1550*530*1100mm
		After folding: 900*430*700mm
	Package Size	875*380*660mm
	Operating Temperature	-10~40°C
	Storage Temperature	-20~50°C
	Net Weight	21kg
	Gross weight	25.5kg
	IP Rating	IPX5
	Max. Speed	25km/35km (enduser can unlock to 35km easily)
	Transmission	Shimano 7 speed
	Electric range	<60km
	Assisting range	<80km
	Shock-absorption	Front fork and addle tube double Shock-absorption
	Brake	Front: Mechanical disc brake
		Rear: Mechanical disc brake
	Charging time	6 hours
	Payload	≤120kg
Head of Bicycle	Material	Aluminum alloy
	Handgrip Material	TPR
	Foldable	Yes
	Adjustable of height	Yes,with protective jacket
	Small bell	Electronic speaker
	Brake handle	left/Right
	Mobile Phone Charging Station	5V/1A USB type A+ Charging Base
Front Wheel	Drivenmethod	/
	Material	Aluminum alloy
	Hub type	Integrated molding hub
	Size	20*1.95 Inch
	Tire	Rubber pneumatic tire
	Brake	Mechanical disc brake
Rear Wheel	Drivenmethod	Motor drive wheel
	Material	Aluminum alloy
	Hub type	Integrated molding hub
	Size	20*1.95 Inches
	Tire	Rubber pneumatic tire
	Brake	Mechanical disc brake
Main Frame	Material	Aluminum alloy
	Type	Main Girder Folding
	Parking	Parking Stand
	Battery location	Built-in main girder
	Reflect Sticker	On saddle tube
	Max Steering Angle	90°(each side)
	Rear Tale Light	/
	Air pump	Yes
	Foot Pad Material	Nylon
	Foot Pad Type	Folding
	Carrying handle	Yes
Battery	Material	Lithium battery
	Type of batteries	Removable portable charging
	Battery number	40PCS
	Rated Voltage	36V
	Charge cut-off voltage	42V
	Rated Capacity	36V10.4AH
	Charging Temperature	0~40°C
	Battery ManagementSystem	Over-heating, Short circuit, Over- current, Over-charge protection
Charger	Input Voltage	100~240V, 50/60Hz
	Output Voltage	42V DC
	Output Current	2A
	Output Power	84W
Motor	Brand
	Motor Type	Hall Brushless Gear DC Motor
	Rated Voltage	36V
	Rated Power	350W
	Max. Power
	Torque	40 N.m
	Rated speed	380 r/min
System Control	Turn On/Off	Visible button on the speed control handle
	Riding Modes Switch
	Front Light Switch
	Display Type	886 Type HD LCD Display, Clearly under the sunshine
	Display Contents	Speed, mileage, Gear, glitch
	Electronic booster starting point	5 KM start (CE )(Can change to 0KM start by enduser)
	Under voltage protection	31±2V
	Over current protection	15±2A
