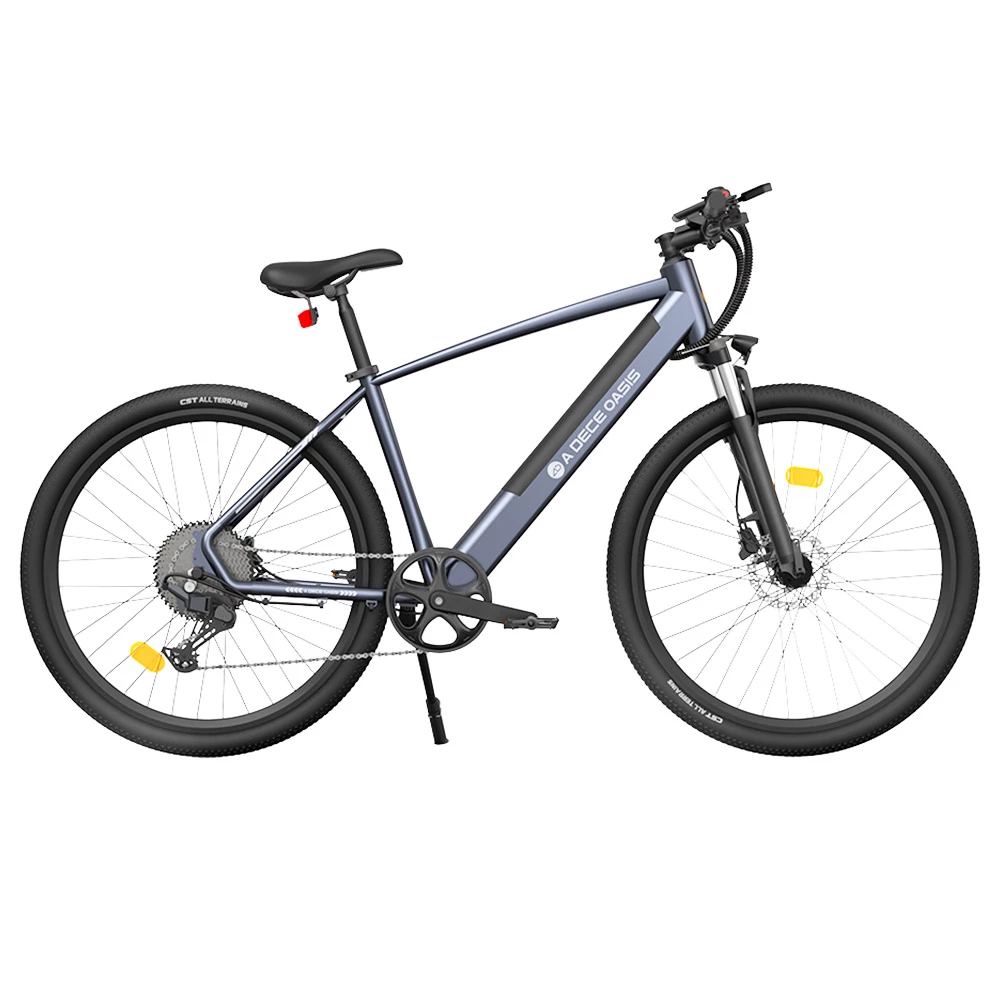

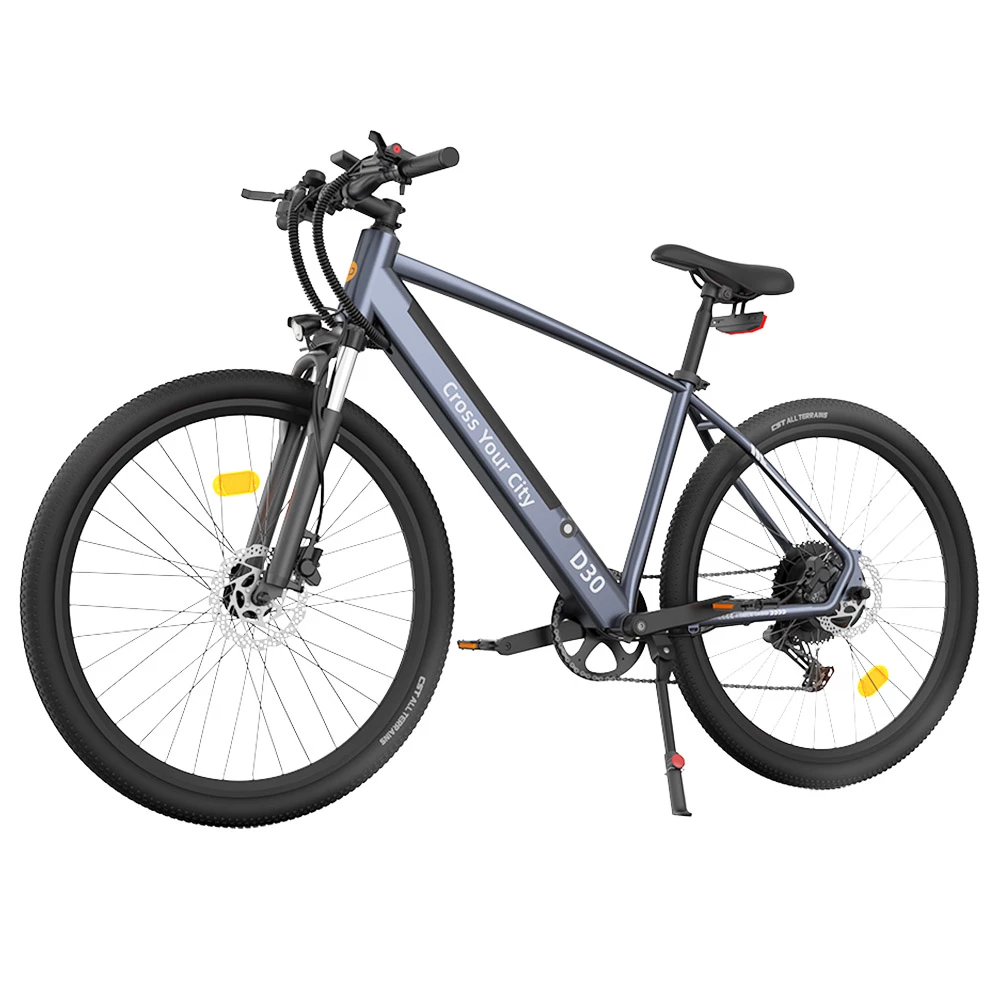

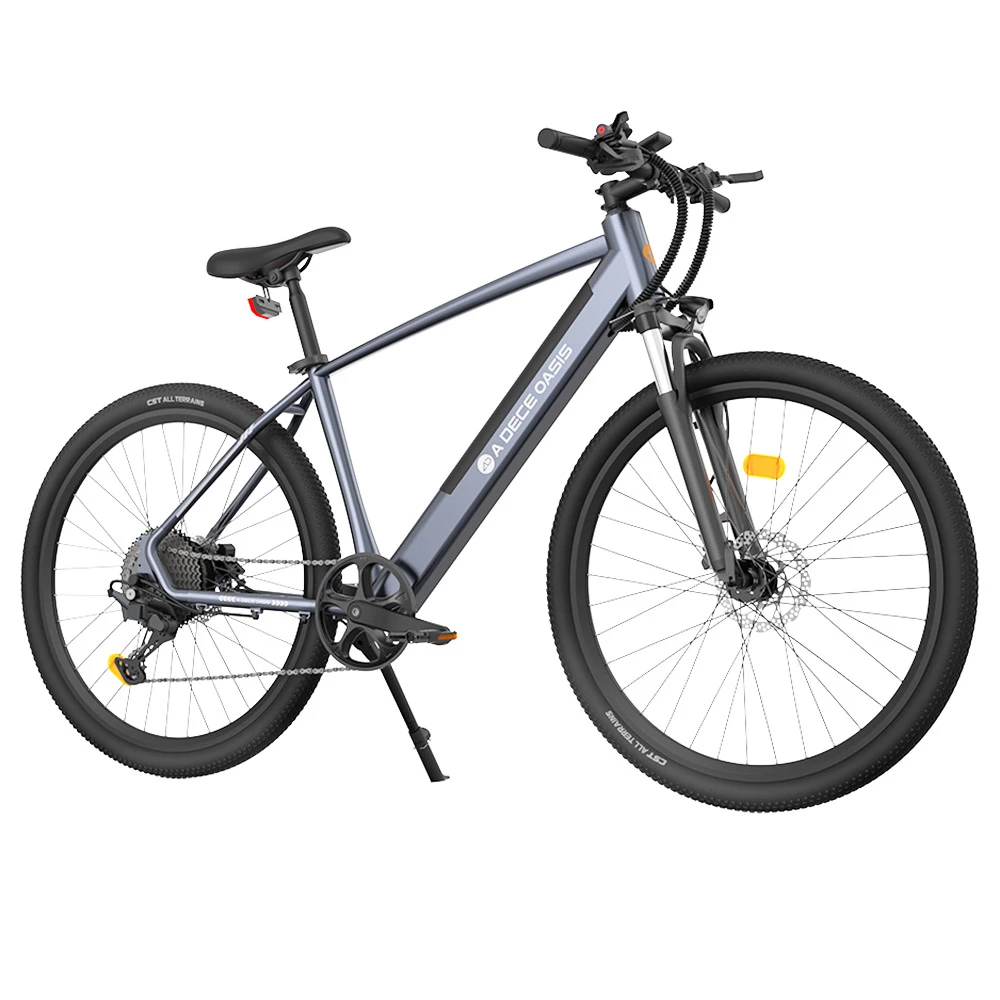

ADO D30 Electric Bicycle 250W Motor Max Speed 25km/h 36V 10.4AH 90km Max Range – Gray

Highlights

Shimano 11 speed Transmission System

Front and rear hydraulic disc brakes.

ADO G-DRIVE dual mode controller. Dual mode switched freely.

Wire-controlled front fork Shock-absorption

S830 central smart LCD display, clearly under the sunshine



Specification

General	Brand	ADO
	Type	27.5*1.95 Inches
	Model	D30
	Color	Grey/Silver
Vehicle Performance	Dimensions L×W×H	Overall unit:1800*640*1100mm
		After folding:NO
	Package Size	1480x260x780 mm
	Operating Temperature	-10~40°C
	Storage Temperature	-20~50°C
	Net Weight	22 Kg
	Gross weight	29.5 Kg
	IP Rating	IPX5
	Max. Speed	25km/h
	Transmission	Shimano 11speed
	Gear ratio	(40-11):44
	Electric range	/
	Assisting range	<90km
	Shock-absorption	Wire-controlled shock absorber front fork
	Brake	Front: Hydraulic disc brake
		Rear: Hydraulic disc brake
	Charging time	6-7 hours
	Payload	≤120kg
Head of Bicycle	Material	Aluminum alloy
	Handgrip Material	TPR
	Foldable	No
	Adjustable of height	No
	Throttle lever	No
	Small bell	bell
	Brake handle	left/Right
	Mobile Phone Charging Station	yes
Front Wheel	Drivenmethod	/
	Material	Aluminum alloy
	Hub type	spokes hub
	Size	27.5 Inch
	Tire	Rubber pneumatic tire (American gas nozzle)
	Brake	Hydraulic disc brake
Rear Wheel	Drivenmethod	Motor drive wheel
	Material	Aluminum alloy
	Hub type	spokes hub
	Size	27.5 Inches
	Tire	Rubber pneumatic tire (American gas nozzle)
	Brake	Hydraulic disc brake
Main Frame	Material	Aluminum alloy
	Type	Fixed tripod
	Parking	Middle kickStand
	Battery location	Built into the down tube
	Reflect Sticker	The taillights are under the saddle, and on the front/rear spokes
	Max Steering Angle	90°(each side)
	Rear  Light	Electric taillight
	Air pump	Accessory
	Foot Pad Material	Aluminum alloy
	Foot Pad Type	Fixed
	Carrying handle	No
Light auxiliary settings	Front white light + white reflector	YES
	Rear red light + red reflector	YES
	Two yellow reflectors before and after the pedal	YES
	Two yellow reflectors on the spoke	YES

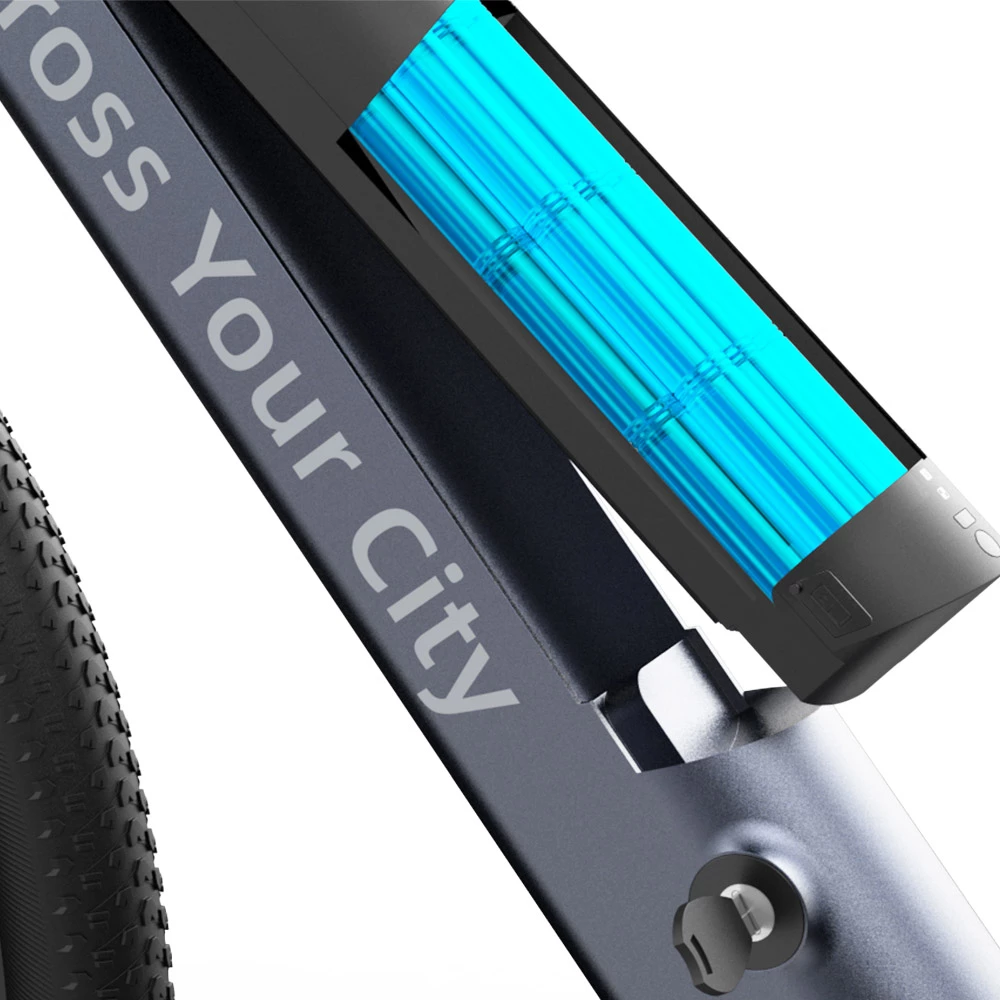

Battery	Material	Lithium battery
	Type of batteries	Removable portable charging
	Battery number	40PCS
	Rated Voltage	36V
	Charge cut-off voltage	42V
	Rated Capacity	36V10.4 AH
	Charging Temperature	0~40°C
	Battery ManagementSystem	Over-heating, Short circuit, Over- current, Over-charge protection
Charger	Input Voltage	100~240V, 50/60Hz
	Output Voltage	42V DC
	Output Current	2A
	Output Power	84W

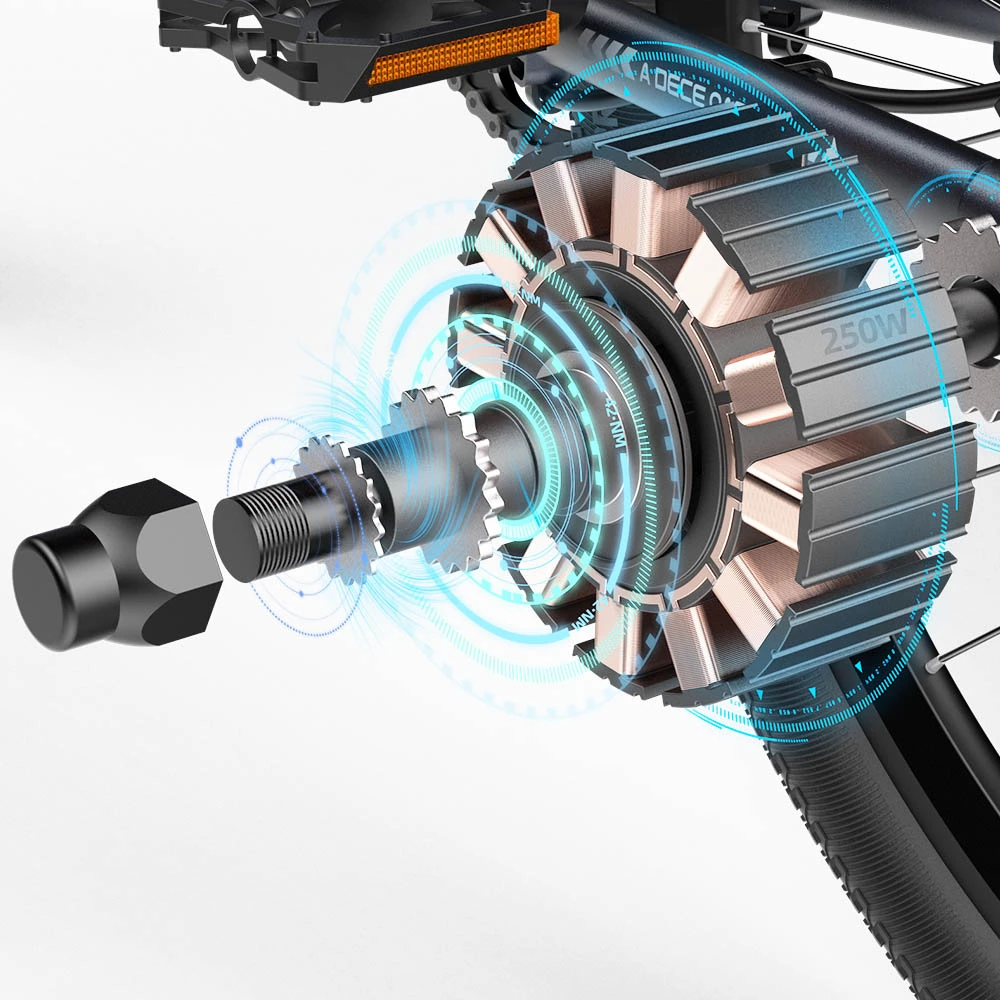

Motor	Brand
	Motor Type	Hall Brushless Gear DC Motor
	Rated Voltage	36V
	Rated Power	CE Version:250W
	Max. Power
	Torque	42N.m
	Rated speed	380 r/min
System Control	Turn On/Off	Visible button on the speed control handle
	Riding Modes Switch
	Front Light Switch
	Display Type	S830 central smart LCD display, Clearly under the sunshine
	Display Contents	Speed, mileage, Gear, glitch
	Electronic booster starting point	6 KM start
	Under voltage protection	31±2V
	Over current protection	15±2A
