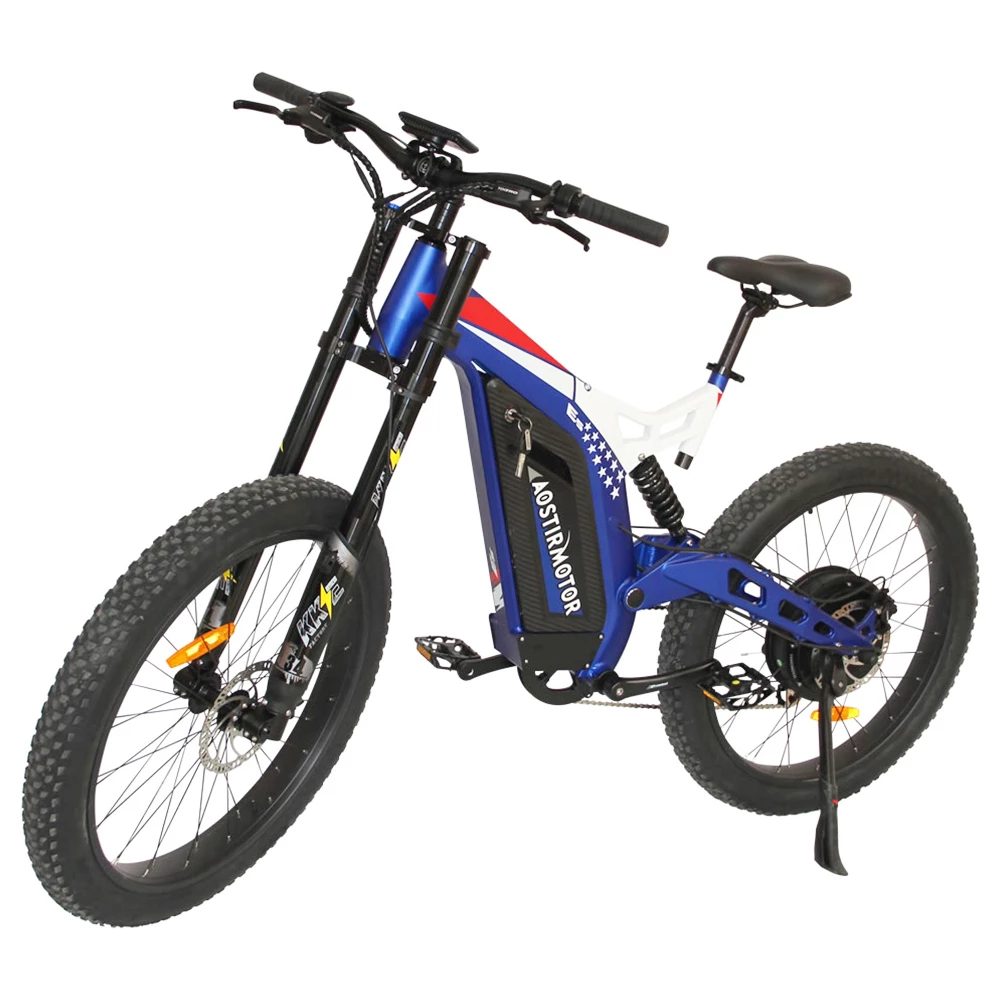

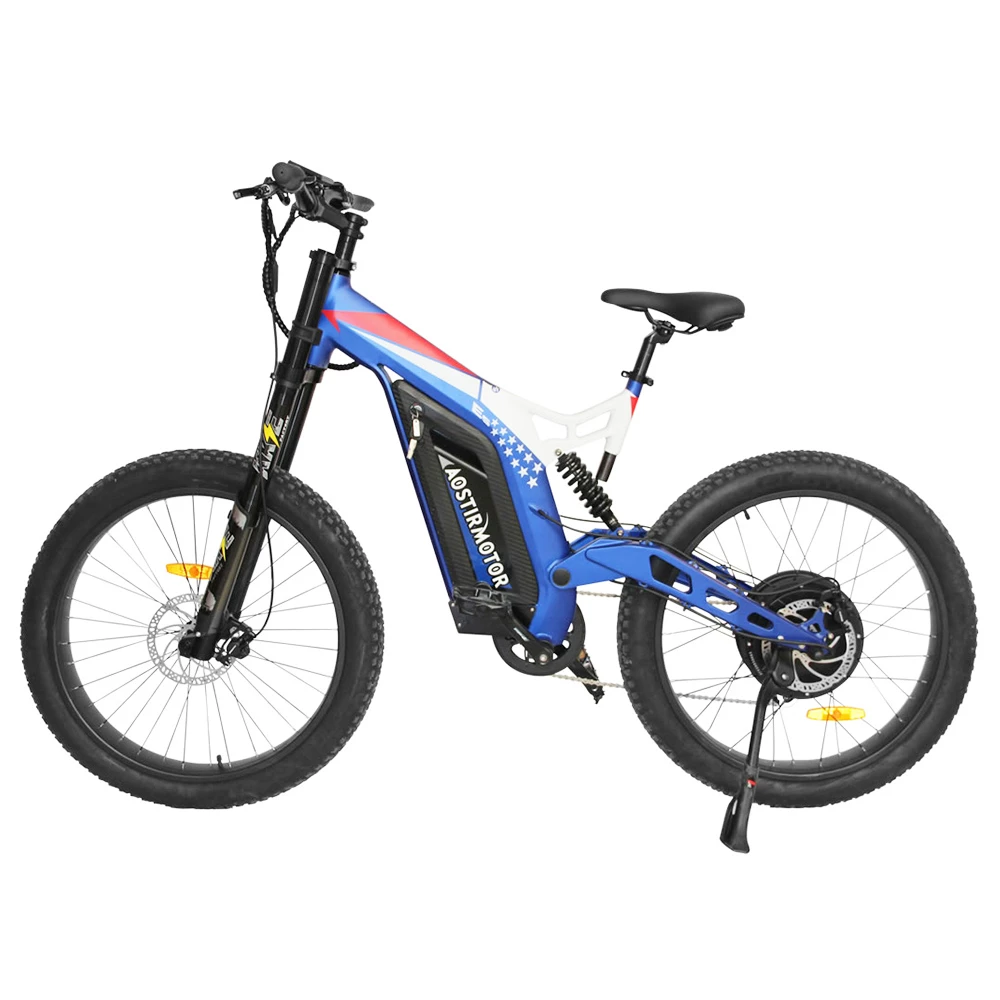

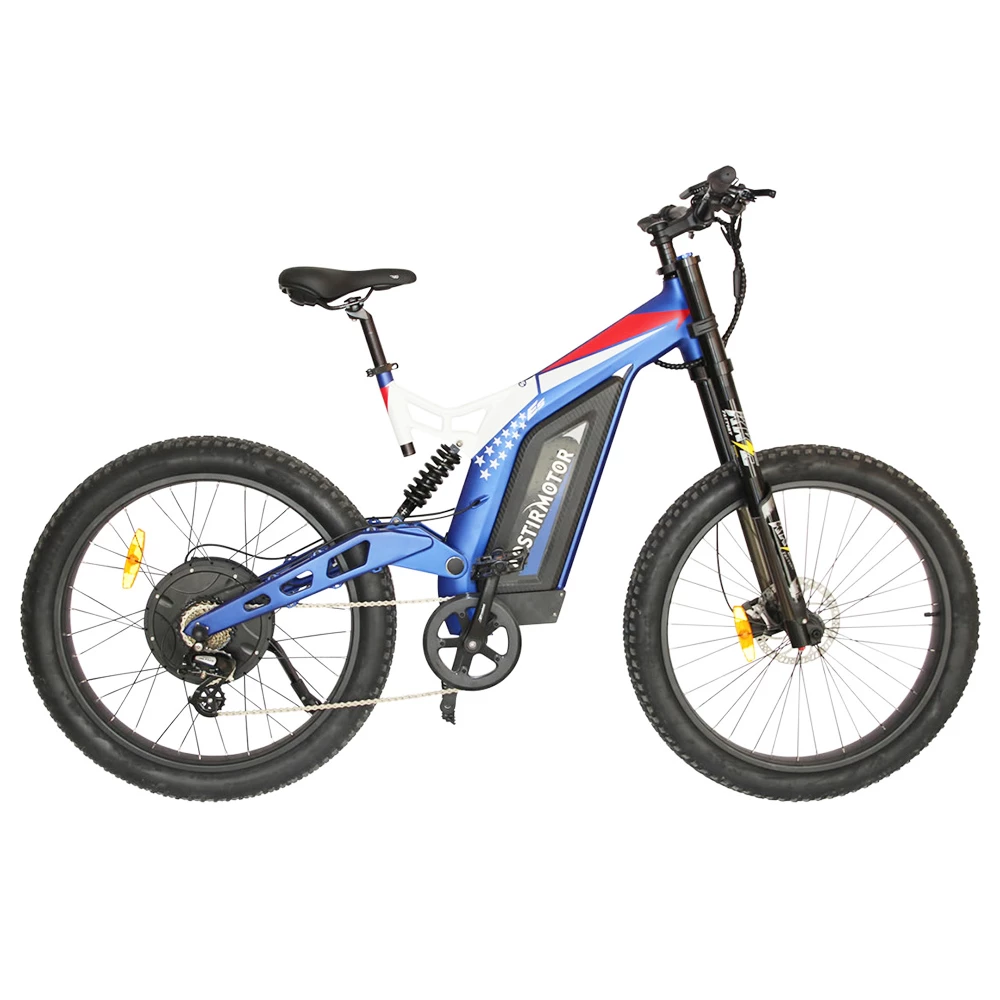

AOSTIRMOTOR S17 1500W Electric Bike 26*3.0” Fat Tire 48V 20Ah Battery 50km/h Max Speed 7 Speed Shimano Gear

Highlights



1. This is a mountain electric bicycle designed with the American flag as the main color.

2. The bicycle frame is made up of red, white and blue.

3. With front and rear suspension maneuverability and comfort are leveled up, no substitute for such a cushy ride on a full suspension e-bike.

4. We build every S17-1500W with a high-capacity long-range battery for long happy rides, a powerful 1500W motor for the steep hills, and an intuitive pedal assist and throttle for easy and fun riding.

5. It can ride 40km in pure electric mode.

6. Load capacity: 300lb.



Specification

System	Components	Technical Parameters
Power System	Battery	48V 20Ah lithium battery SAMSUNG
	Motor	1500W Motor
	Controller	48V 30A
	Charger	110-220V (US/Europe)
	Display	Color-LCD
	Turn-Handle	Rotary
	Power sensor	PAS intelligent pedal assistant system
	Charge Time	4-6 hours   (Recharge regularly to extend the life of battery)
Structure Sytem	Fork	Double Shoulder Big Fork
	Frame	6061 Aluminum Alloy
	Handlebar	31.8*700mm
	Stem	28.6*31.8*110mm
	Rear Rack	NO
Brake System	Brake	F/R Mechanical Brake (With 4pcs Brake Pads)
	Disc Brake	Front 180 & Rear 160
	Brake lever	Universal
Wheel system	Rim form	Spoke wheel
	Rim Material	Aluminum alloy
	Tire	26×3.0 inch Fat Tire
Speed System	Gear Shift Lever	7 Speed Dial SHIMANO/Sunrace
	Derailleur	7 Speed SHIMANO/Sunrace
	Throttle	With
Shock absorption System	Front suspension	Fork shock absorption
	Rear suspension	Rear spring shock
	Structure shock absorption	Lightweight Aluminum Alloy Frame
Other parts	Saddle	City type
		AL6061 T4T6
		27.2*250mm
	Tube Clamp	D1=30mm  D2=38mm
	Light	With Front light
	Pedal	Universal
	Footrest	Universal
	Fender	NO
Performance	Riding mode	Pedal Mode / Boost Mode / Power Mode
	Range Distance	30-45 km (Pure Power mode)
	Max Speed	50 km/h
Product Parameter	Color	Blue
	Net Weight	38kg
	Gross Weight	43kg
	Product Size	192*112cm
	Package Size	153*28*88cm
	Saddle Height	88-100cm
	Weight Capacity	300 LB
Package includes	Electric Bike	1 pc
	Li-ion Battery	1 pc
	Tool Kit	1 pc
	Manual	1 pc
	Charger	1 pc
	Pedal	1 pc
