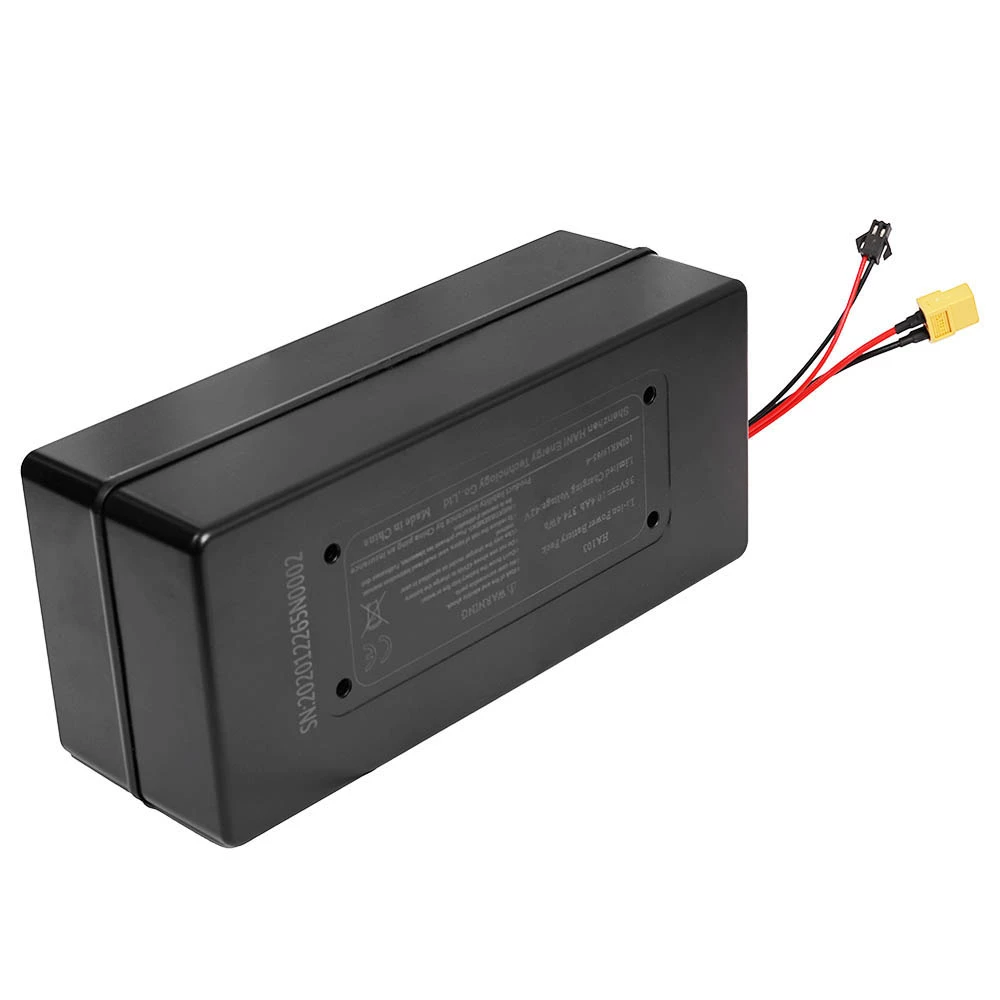

HANIWINNER HA103 Electric Bike Rechargeable Lithium Battery 36V 10Ah 360 Wh for DYU S2/D3+/D3 – Black

Highlights

Note:

1. When charging the battery, please use the regular brand charger. The charging time should not exceed 6 hours.

2. It is strictly forbidden to place batteries in water and in fire, so as to avoid getting close to the heat source. It is forbidden to use metal and conductive materials to plug in the charging and discharging interfaces.

3. If you do not use the battery for a long time, please keep the battery power between 40% and 70%, it is recommended that the battery be charged every two months; otherwise, the battery may be damaged, and this irreversible damage is not within the warranty.

4. Please keep these products and accessories properly and keep them away from children.

5. Unauthorized self-repair and modification of parts may cause damage to the product and such man-made damage is not covered by the warranty.

Specification

Suitable bike brand			ANCHEER, DYU, urbanglide, windgo
Suitable model			DYU S2/D3+/D3F 36V E-bike
Model			HA103-01
Rated Voltage			36V
Rated Capacity			10Ah
Battery Power			360 Wh
Max Charge Voltage			42V
Discharge Cut-off Voltage			27.5V
Max. Charge Current			4A
Standard Discharge Current			4A
Max. Discharge Current(BMS)			12A
Over current protection			60A
Security lock			YES
Charge time			3-4 Hours
Net weight			2.0kg
Gross weight			2.3kg
Battery size			205*75*90mm
Packing size			240*140*115mm
Operating Temperature	Charge			0~45°C
	Discharge			-20~60°C
	Storage	Within a month		0~45°C
		Within a month to three months		5~40°C
		Within three months to one year		10~35°C
Package Included			1 * Battery with wires
